Description
Overview

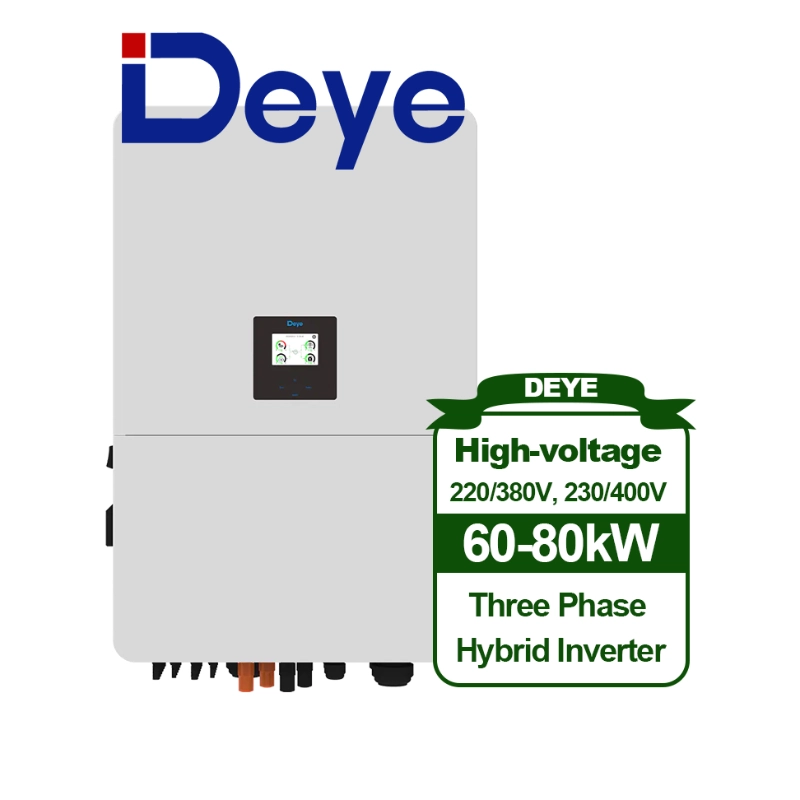

The Deye SUN-60/70/75/80K-SG02HP3-EU-EM6 Series is a powerful commercial and industrial (C&I) hybrid inverter solution that combines solar PV generation, battery storage, grid interaction, and backup power into a single intelligent platform. Designed for high-performance energy storage applications, this inverter delivers exceptional efficiency, flexibility, and reliability for businesses seeking energy independence and lower operating costs.
With support for high-voltage battery systems, multiple MPPT trackers, and advanced monitoring capabilities, the EM6 Series is ideal for factories, warehouses, telecom infrastructure, hospitals, educational institutions, and large commercial facilities.
Key Features
- Available in 60kW, 70kW, 75kW, and 80kW models
- Three-phase hybrid inverter
- Compatible with high-voltage lithium battery systems
- Up to 6 MPPT trackers for maximum energy harvest
- Supports diesel generator integration
- Peak shaving and load shifting functionality
- Time-of-use energy management
- UPS-level switching for critical loads
- Parallel operation capability
- IP65 protection rating for outdoor installation
- Remote monitoring via WiFi, LAN, RS485, and CAN communication
- High efficiency up to 97.6%
Applications
- Commercial Buildings
- Industrial Facilities
- Manufacturing Plants
- Hospitals and Healthcare Centers
- Universities and Schools
- Data Centers
- Telecom Sites
- Agricultural Processing Facilities
- Hotels and Shopping Malls
- Microgrid Projects
Benefits
- Reduce electricity costs through self-consumption
- Maximize solar energy utilization
- Improve energy security and backup capability
- Lower dependence on diesel generators
- Enable intelligent battery charging and discharging
- Reduce peak demand charges
- Increase return on investment for solar projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Series | SUN-60/70/75/80K-SG02HP3-EU-EM6 |
| Inverter Type | Hybrid |
| Phase | Three Phase |
| Rated Power | 60kW / 70kW / 75kW / 80kW |
| Battery Type | Lithium-ion |
| Battery Voltage Range | High Voltage |
| MPPT Trackers | Up to 6 |
| Maximum Efficiency | 97.6% |
| Protection Rating | IP65 |
| Communication | CAN, RS485, WiFi, LAN |
| Grid Connection | Three Phase |
| Parallel Operation | Supported |
| Monitoring | Deye Smart Monitoring Platform |
| Cooling Method | Intelligent Air Cooling |
| Installation | Indoor / Outdoor |
