Description

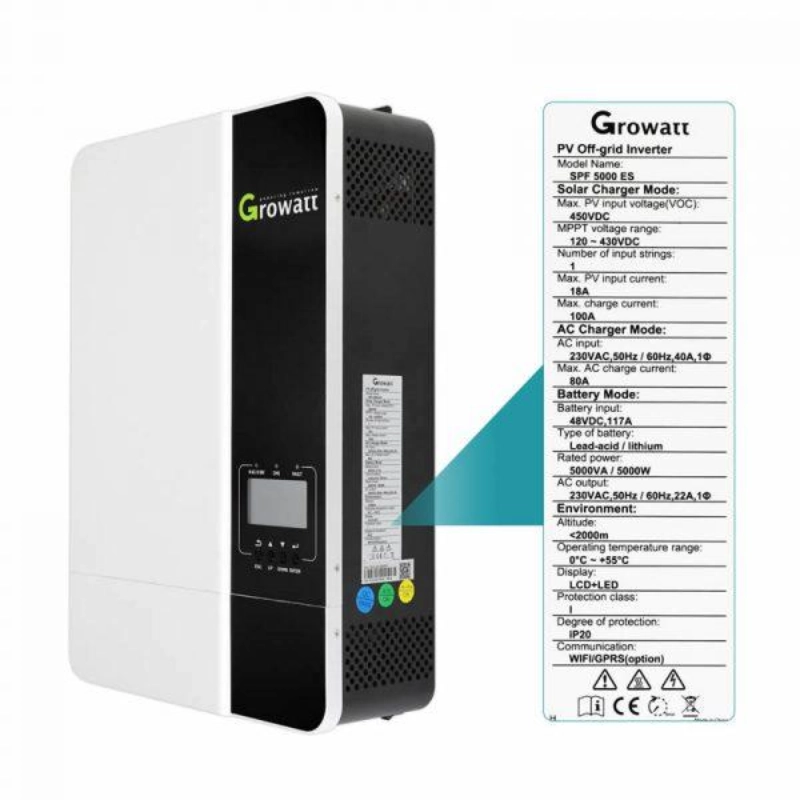

Core Specifications

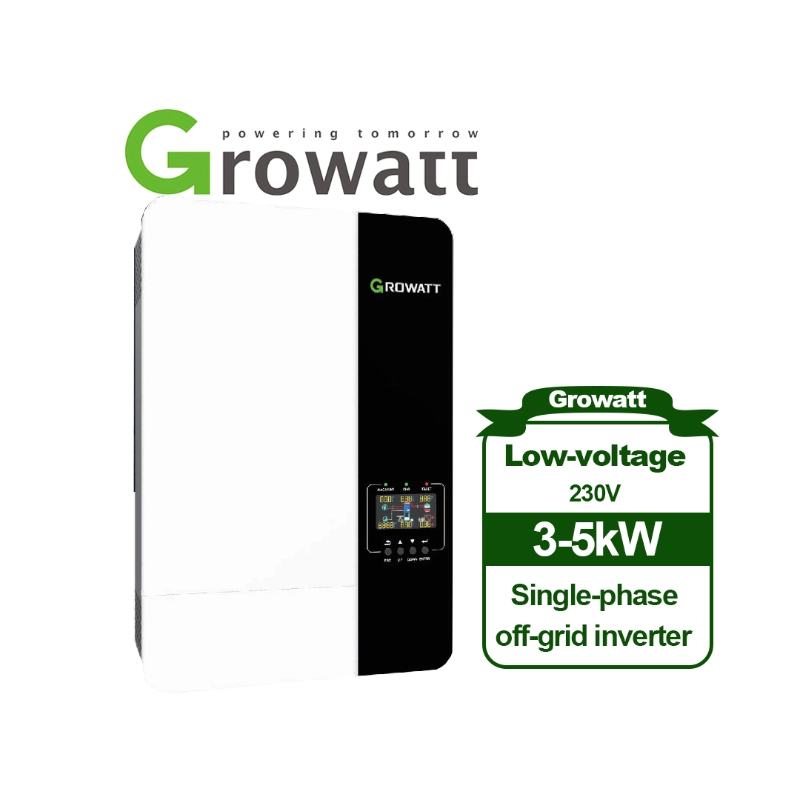

- Rated Power: 3kW to 5kW models available
- Battery Voltage: 48VDC (compatible with Lead-Acid and Lithium batteries)
- Max PV Input Voltage: Up to 450VDC
- Output Waveform: Pure Sine Wave
- Efficiency: Up to 98%
- Phase: Single Phase
Key Features
- Versatile Operation: Can operate with or without a battery bank (requires a reliable solar/grid source).
- Integrated MPPT: Allows for wide PV input voltage ranges, making string design flexible.

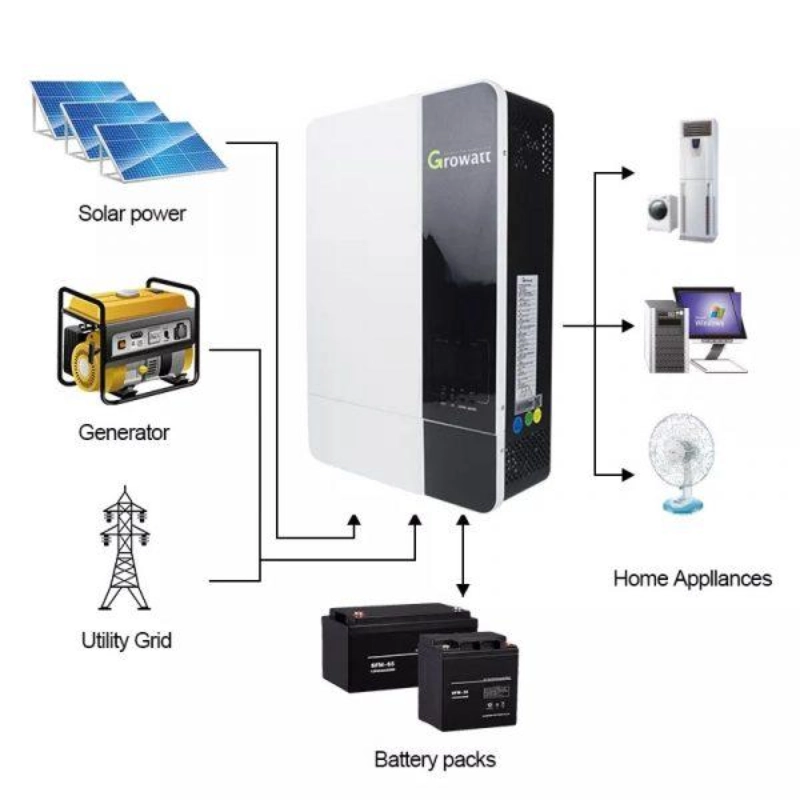

- Grid/Generator Support: Features an AC input for seamless integration with the electrical grid or a backup generator.

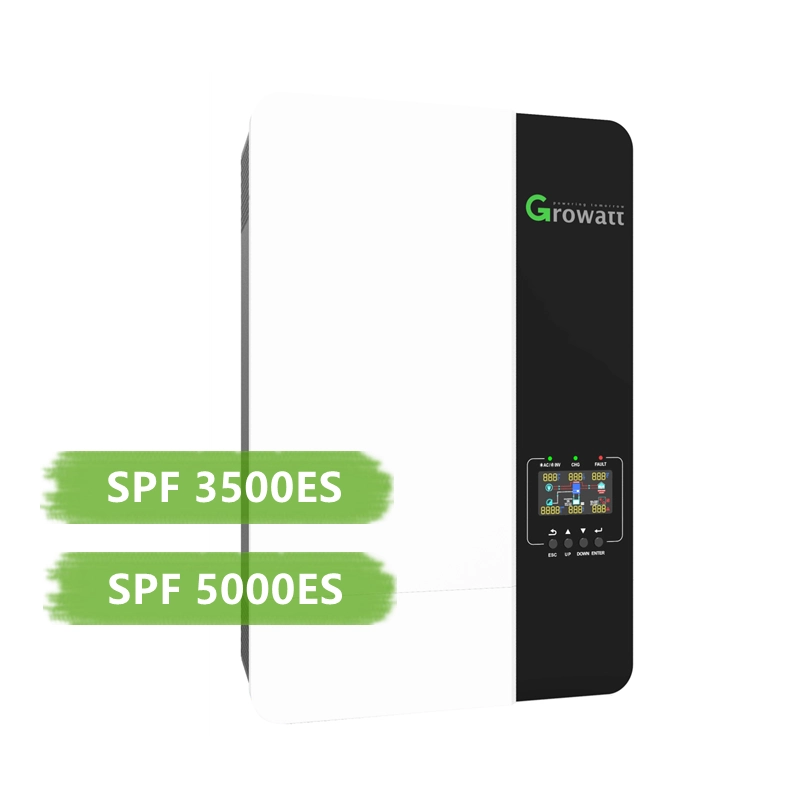

- Parallel Capability: The 5000ES model supports parallel operation for scaling up system capacity.
