Description
Core Specifications by Model
The series covers a wide power bracket from 3.6kW up to 10kW, maintaining a highly standardized footprint across the family.
| Parameter | 3.6K Model | 5K Model | 6K Model | 7.6K Model | 8K Model | 10K Model |
|---|---|---|---|---|---|---|
| Rated AC Output | 3,600W | 5,000W | 6,000W | 7,600W | 8,000W | 10,000W |
| Max. PV Input Power | 4,680W | 6,500W | 7,800W | 9,880W | 10,400W | 13,000W |
| No. of MPPT Trackers | 2 | 2 | 2 | 2 | 2 | 2 |
| Battery Voltage Range | 40V–60V | 40V–60V | 40V–60V | 40V–60V | 40V–60V | 40V–60V |
| Max. Charge/Discharge | 90A | 120A | 135A | 190A | 190A | 210A |
Key Technology Features
- Low-Voltage 48V Battery Architecture: Operates safely on standard 48V Lithium-ion or Lead-acid battery banks, self-adapting directly to the battery’s BMS protocol via CAN or RS485 interfaces.
- Massive Parallel Scaling: Supports networking up to 16 units in parallel for both on-grid and off-grid scenarios, making it exceptionally easy to scale up storage systems as power demands increase.
- Advanced Smart Load & AC Coupling: Allows you to repurpose existing grid-tied solar systems by easily AC-coupling them directly into this unit, utilizing a designated port that can alternatively switch to drive smart loads or handle generator input.
- Flexible Time-of-Use Configurations: Features a programmable scheduler allowing 6 distinct time periods for charging and discharging your system, maximizing peak-valley electricity arbitrage.

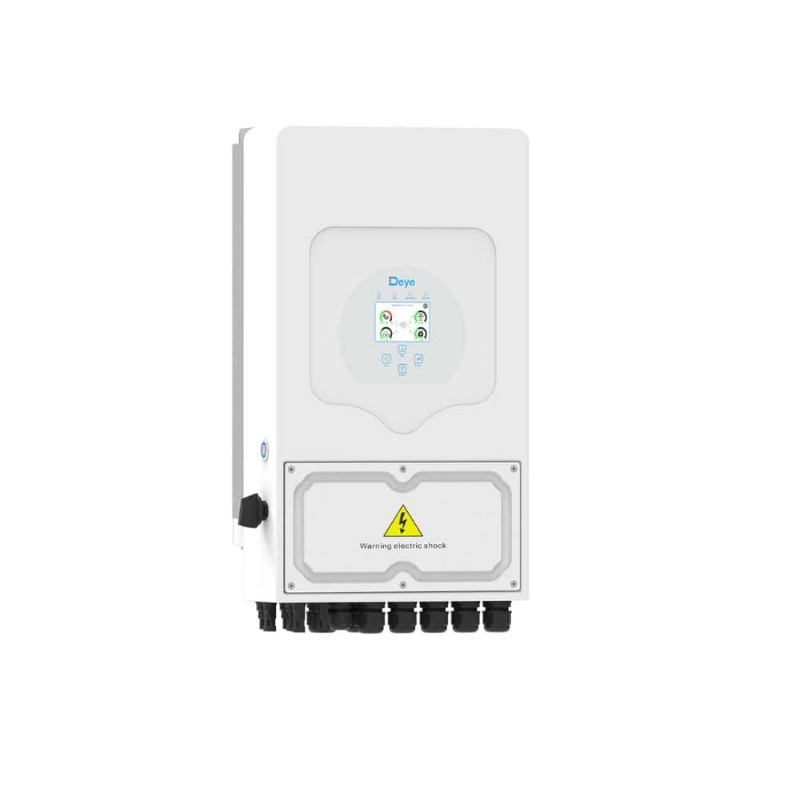

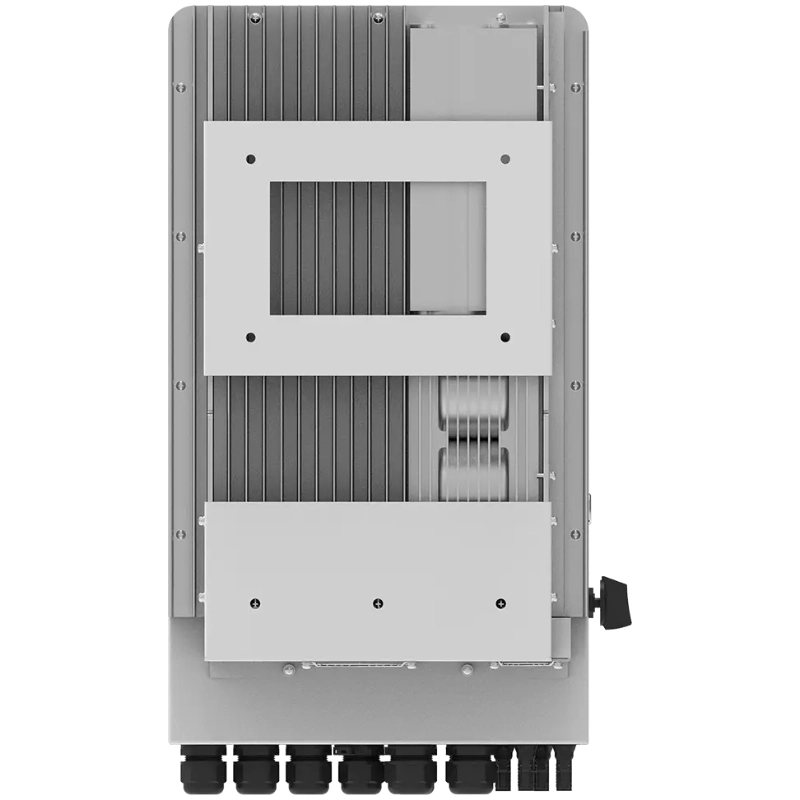

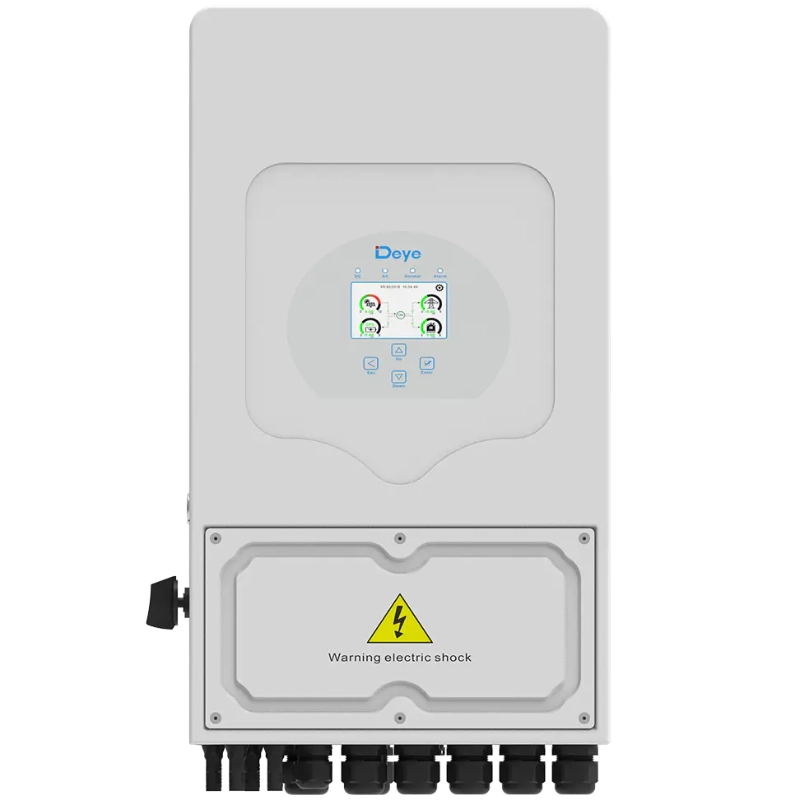

- Rugged Physical Profile: Packaged in a compact, wall-mounted chassis measuring 330 × 580 × 232 mm with an outdoor-ready IP65 ingress rating and an interactive, colorful touchscreen LCD display.
Functional Port Architecture

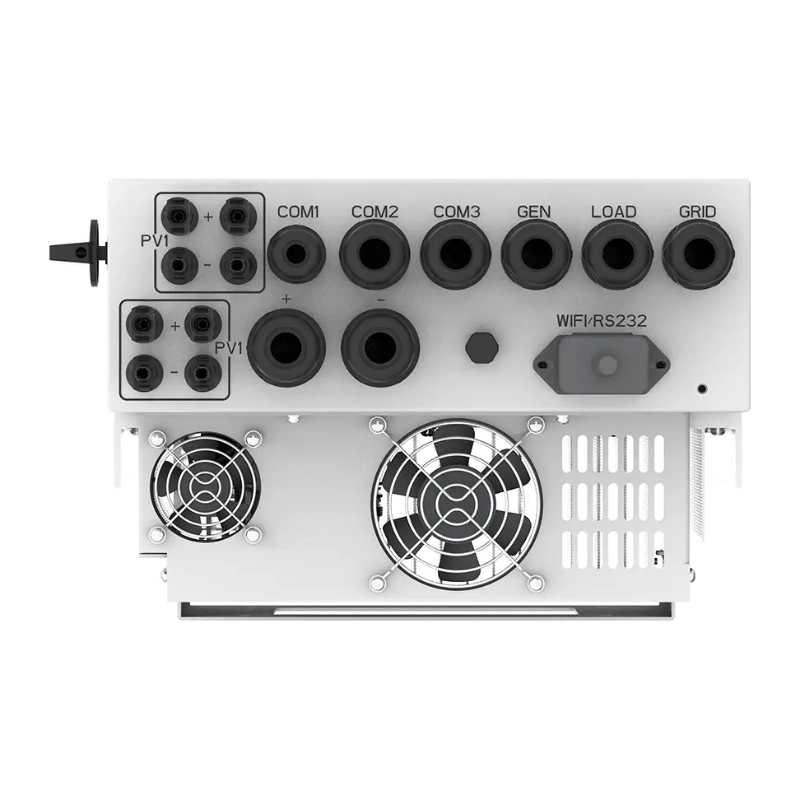

The base connection terminal of the SG05LP1 platform features a highly communicative configuration:
- Dual MPPT Inputs: Separate terminal connections to optimize two independent solar strings.
- Dedicated Ports: Independent AC output lines explicitly segmented for Grid, Backup Load, and Generator / Auxiliary Input.
- Communication Bay: Ports supporting parallel logic (CAN), BMS interface, CT Clamp metering for zero-export configurations, and a slot for a plug-and-play Wi-Fi monitoring dongle.
